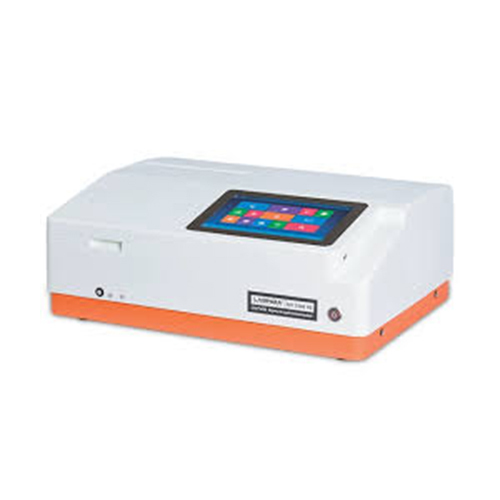

UV 3200 Touch Screen Spectrophotomet

Get a Price/Quote

UV 3200 Touch Screen Spectrophotomet Specification

Accuracy
0.3% T

Feature
Automatic wavelength calibration, Photometric accuracy, Data storage, USB connectivity

Measurement Range
190-1100 nm

Model No
UV-3200

Automation Grade
Fully Automatic

Capacity
4 cells (10mm, 20mm, 30mm, 50mm)

Power Source
AC Electric

Voltage
220V/110V

Frequency
50/60 Hz

Core Components
Deuterium Lamp, Tungsten Lamp, Photodiode Detector

Temperature Range
Room Temperature to 40C

Equipment Materials
Metal and ABS Plastic Housing

Type
Double Beam Spectrophotometer

Usage
Laboratory, Analytical Research, Educational Institutions

Display Type
Touch Screen Display

Dimension (L*W*H)
625 mm 430 mm 210 mm

Weight
Approximately 28 kg

Data Output Port
USB, RS232

Photometric Range
-0.3 3.0 A

Lamp Life
2,000 hours (Typical)

Detector
Silicon Photodiode

Sample Compartment Size
110 mm 130 mm 50 mm

Spectral Bandwidth
2 nm

Operating System
Embedded Multi-language software

Stray Light
0.05%T at 220nm, 360nm

Light Source Switching
Auto-switching

Data Storage
Internal memory and USB export

Wavelength Accuracy
0.3 nm

Baseline Flatness
0.001 A

Scan Speed
Fast/Medium/Slow (Selectable)

Lamp Type
Deuterium Lamp & Tungsten Halogen Lamp

Wavelength Repeatability
0.2 nm

Operating Humidity
85% RH (non-condensing)

About UV 3200 Touch Screen Spectrophotomet

Standard Features of Double Beam Spectrophotometer - UV 3200 Touch Screen:

The all-aluminium die-casting base makes the instrument stronger and more durable.
High-resolution TFT colour LCD touch screen provides excellent display effect and simple operation.
Built-in computer (2GB memory/64GB SSD storage) with 178-degree full view, 16 million colours, high resolutions, 10.1-inch IPS colour LCD touch screen, and capacitive 10-point touch control for enhanced display and ease of use.
Wide sample room, suitable for 5-100mm sample cell holders and other accessories.
Start-up self-calibration system and warm-up countdown.
Automatically moves the wavelength to the set position and automatically performs zero calibration.
Connects directly to a printer and outputs measurement results.
Connects to a PC via USB and can be controlled by software, enriching and expanding the application.
Supports firmware upgrades via USB storage directly.
Software design fully complies with the 21CFR requirements stipulated in Pharmacopoeia, with perfect GLP/GMP functions, allowing for effective tracking and management of instrument performance and measurement data.

Specification	Description
Optical System	Double beam with Czerny-Turner Monochromator
Light Source	Tungsten and Deuterium Lamp, pre-aligned
Spectral Bandwidth	0.5, 1, 2, 4, 5 nm
Wavelength Range	190 ~ 1100 nm
Wavelength Accuracy	0.3 nm (full range 190nm - 1100nm)
Wavelength Repeatability	0.1 nm
Wavelength Resolution	0.1 nm
Scanning Speed	1 to 3000nm/min variable
Photometric Range	-4 to 4.0A
Photometric Accuracy	0.5A 0.002 A
Noise	0.000016 Abs RMS@500nm
Drift	< 0
Baseline Flatness	0.001 A
Stray Light	0.02 @ 220nm KCL 198nm = 1% T
Optional Accessories	Specular Reflection Accessory, Integrating Sphere 60mm / 100mm Automatic 8 Cell Changer, long path cell holder, Peltier Solid Sample holder etc.
Photometric Mode	Photometry, Quantitation, Spectrum, Kinetics
Detector	Dual Silicon photodiode
Lamp Interchange Wavelength	Automatic interchange linked to wavelength. The interchange wavelength can be set freely.
Wavelength Slew Rate	6500 nm/min
Sample Cell Holder	Pair of 10 mm cell holder upgradable to automatic 8 cell changer
Display	10.1 Inch IPS colour LCD touch screen, capacitive 10-point touch control (resolution: 1280800), 2GB memory/64GB SSD storage, 178 degree full view, 16 million colours, high resolutions, 10.1 inch IPS colour. Embedded Operating system, with sealed membrane.
Software	Complies with the requirement of 21CFR Part 11 with GLP/GMP functions, file management functions.
Storage	64GB (built-in), unlimited expansion (USB storage, SD card, network storage device)
Interface	USB-A (extensible; connect USB printers, storages, mice, keyboards and other peripherals)3, USB-B (PC)1, RJ 45 (Ethernet)1, VGA1, HDMI1, Bluetooth, WiFi
Power	100 ~ 240 V AC, 50/60 Hz, 100 W
Dimension	600 x 450 x 200 mm
Weight	18kg

Advanced Double Beam Performance

The UV 3200 is engineered with a double beam optical configuration, enabling minimal stray light (0.05%T at 220nm, 360nm) and exceptional signal stability over the full measurement range (190-1100 nm). Automatic wavelength calibration and photometric reliability make it ideal for both qualitative and quantitative analysis.

User-Friendly Touch Screen Control

Equipped with a modern touch screen display, the UV 3200 provides multilingual, embedded software for easy navigation and complete control of operations. Users can adjust scan speed, store results in internal memory, and conveniently export data via USB, streamlining workflow efficiency.

Robust Construction for Laboratory Needs

Constructed from metal and ABS plastic, this spectrophotometer withstands rigorous lab usage. The spacious sample compartment accommodates four cuvettes of various sizes (10mm, 20mm, 30mm, 50mm) and supports analytical flexibility. Its compact design and manageable weight (approx. 28 kg) make it suitable for any lab environment.

FAQ's of UV 3200 Touch Screen Spectrophotomet:

Q: How does the automatic wavelength calibration work on the UV 3200 spectrophotometer?

A: The UV 3200 features an automatic wavelength calibration system, which ensures that the instrument precisely aligns to the required wavelength settings, minimizing user intervention and measurement error. This is particularly beneficial during routine analyses and instrument maintenance.

Q: What are the primary usage scenarios for this spectrophotometer?

A: The UV 3200 is widely used for laboratory analysis, research in analytical chemistry, and educational applications. It is suitable for measuring absorbance and transmittance of liquid samples, quality control, and teaching experiments in schools and universities.

Q: When should I replace the deuterium and tungsten lamps in the instrument?

A: Typical lamp life is 2,000 hours for both the deuterium and tungsten halogen lamps. It is advisable to monitor lamp intensity regularly and replace the lamps when the intensity drops below specifications or when the cumulative usage time approaches the recommended limit.

Q: Where can the data generated by the UV 3200 be stored and exported?

A: Measurement data can be saved directly to the spectrophotometer's internal memory and easily exported to external devices using the USB port, or transferred via RS232 connection for further analysis or reporting.

Q: What benefits does the double beam design offer over single beam systems?

A: The double beam configuration enhances measurement stability by compensating for optical fluctuations and lamp drift, delivering more reliable and accurate results when compared to single beam spectrophotometers.

Q: How is the UV 3200 operated and controlled during experiments?

A: The spectrophotometer is operated via a responsive touch screen interface that supports multiple languages. Users can set parameters such as scan speed, wavelength, and photometric range, initiate scans, and monitor results in real-time.

Q: Which sample sizes are compatible with the UV 3200's sample compartment?

A: The sample compartment supports up to four cells with path lengths of 10mm, 20mm, 30mm, and 50mm, accommodating a wide range of analytical protocols and sample volumes in one batch.
