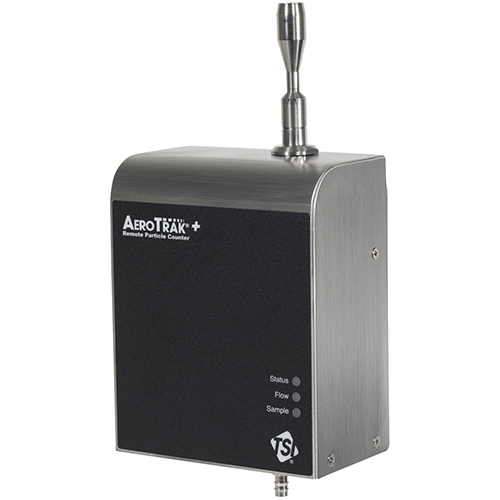

7310 AeroTrak-Plus Remote Particle Counter

Send Inquiry

Request To Call Back

7310 AeroTrak-Plus Remote Particle Counter

Get a Price/Quote

7310 AeroTrak-Plus Remote Particle Counter Specification

Response Time
<1 minute to alarm

Equipment Type
Remote Particle Counter

Port Size
1/4 or 6 mm ID

Accuracy
Meets ISO 21501-4 and JIS B9921

Application
Cleanroom monitoring, contamination control

Temperature
10C to 35C (operating)

Power Supply
24 VDC, 1.25 A

Gas Pressure
0.70 to 2.75 bar (10 to 40 psi)

Display Type
N/A (Remote unit)

Automation Grade
Automatic

Interface Type
RS-485, Ethernet, Modbus TCP/IP

Features
Long-life laser diode, internal vacuum sensor, HEPA filtered exhaust, stainless steel enclosure

Mounting Type
Wall-mounted or panel-mounted

Resolution
0.1 m

Operating Voltage
24 VDC

Measuring Range
0.3 m, 0.5 m, 1.0 m, 5.0 m, 10.0 m, 25.0 m

Test Range
0.3 25 m (particle sizes)

Humidity
0 to 90% RH (non-condensing)

Usage
Continuous particle monitoring

Capacity
10,000 sample records

Machine Weight
Approx. 2.2 kg

Test Speed
0.1 CFM (2.83 LPM)

Control Mode
RS-485 / Modbus

Compliance
ISO 14644, GMP, FS209E compatible

Sampling Modes
Continuous, Timed, Delay, Repeat

Laser Source
Long-life laser diode (>10 years MTBF)

Alarms
Configurable relays and remote notification

Storage Memory
10,000 data sets

Enclosure Material
316L Stainless Steel

Sampling Way
Isokinetic probe

Data Output
Ethernet TCP/IP, RS-485 Modbus

Exhaust
HEPA filtered

Dimensions (L x W x H)
187 mm x 110 mm x 55 mm

About 7310 AeroTrak-Plus Remote Particle Counter

Features and Benefits

Easy installation and reliable operation with reduced costs
Reliable laser technology backed by the industrys longest warranty (five years)
Secure, long-term collection and storage of critical manufacturing data
Reduce installation costs and complexitywireless enabled with minimal infrastructure
Identifies industrys widest range of particle sizes by way of available model options
Simplifies integration with Ethernet or DC power
Reliable operation with heavy industrial electrical immunity compliance
Early-warning of adverse environmental trends with per second sampling
Predictive instrument maintenance alerts
ISO 14644-14 suitability for use classified
Sealed inlet prevents accidental ingress of cleaning solutions
Rapid setup and unit configuration using standard USB-C cable
Easy integration into TSI FMS Software with sensor auto discovery
Easy Integration into third party systems with 4-20 mA analog data output model options
Model 7510 only
Enables 21 CFR Part 11 data collection with FMS Software
Meets EU and US FDA Aseptic Processing Guidelines with 1 CFM (28.3 L/min) flow rate, 0.5 m and 5 m size channel size options
Vaporized hydrogen peroxide (VHP) resistant model option

Precision Contamination Monitoring

The 7310 AeroTrak-Plus Remote Particle Counter delivers highly accurate and automated measurement of airborne particles ranging from 0.3 to 25.0 m. Its compliance with ISO 21501-4, ISO 14644, and GMP guidelines makes it a reliable tool for maintaining cleanroom standards in pharmaceutical, semiconductor, and other sensitive industries.

Advanced Data Management and Integration

Equipped with 10,000-record storage capacity, this device offers seamless data export via Ethernet TCP/IP and RS-485 Modbus networks. Its flexible integration options allow for easy communication with building management systems and real-time monitoring through configurable alarms and notifications.

Robust Design for Demanding Environments

Encased in heavy-duty 316L stainless steel, the AeroTrak-Plus ensures durability and chemical resistance, critical for challenging cleanroom settings. The HEPA-filtered exhaust, internal vacuum sensor, and isokinetic probe provide safe, accurate, and reliable long-term monitoring.

FAQ's of 7310 AeroTrak-Plus Remote Particle Counter:

Q: How does the 7310 AeroTrak-Plus Remote Particle Counter operate in a cleanroom environment?

A: This counter uses an isokinetic probe for precise sampling and can be wall- or panel-mounted for seamless integration. It continuously monitors airborne particle levels and instantly triggers alarms if thresholds are exceeded, ensuring immediate response to contamination.

Q: What data output and integration options are available with this device?

A: The system provides data transmission via Ethernet TCP/IP, RS-485, and Modbus, allowing for compatibility with building management systems and remote notification setup. This supports comprehensive monitoring and traceability.

Q: Where is the AeroTrak-Plus Remote Particle Counter typically used?

A: It is designed primarily for cleanrooms and contamination-sensitive environments such as those found in pharmaceuticals, electronics manufacturing, hospitals, and research labs, where maintaining airborne particle levels is critical.

Q: What are the benefits of using a device with a long-life laser diode and stainless steel enclosure?

A: The long-life laser diode ensures consistent measurement accuracy for over 10 years with minimal maintenance, while the 316L stainless steel enclosure resists corrosion and withstands harsh cleaning procedures, maximizing operational lifespan.

Q: When can users access stored data on the particle counter?

A: The AeroTrak-Plus stores up to 10,000 data sets, which can be retrieved any time via its data interfaces. The information is available for audit, compliance, or trend analysis as needed by facility operations or regulatory requirements.

Q: What process does the device use for sampling and analysis?

A: The counter operates using continuous, timed, delay, or repeat sampling modes. It detects and sizes particles from 0.3 to 25.0 m with an accuracy that meets ISO 21501-4 and JIS B9921, ensuring robust contamination control.

Q: How quickly does the device respond to particulate events?

A: With a response time of less than one minute to trigger alarms, the AeroTrak-Plus provides near-instantaneous alerts for out-of-spec conditions, allowing for rapid intervention to protect cleanroom integrity.
