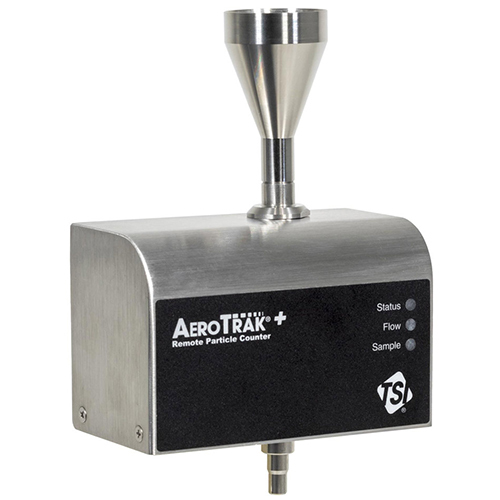

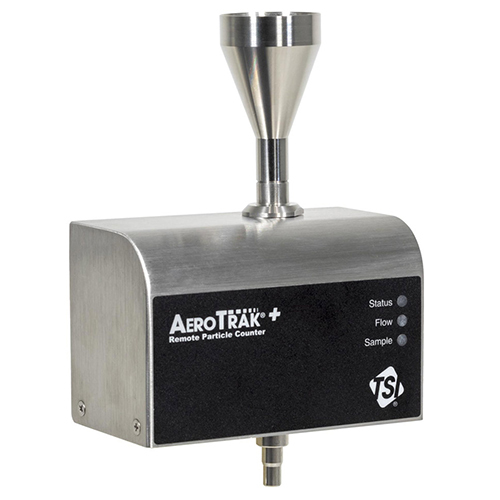

TSI 7010-090-1V AeroTrak-Plus Remote Active Air Sampler

Get a Price/Quote

TSI 7010-090-1V AeroTrak-Plus Remote Active Air Sampler Specification

Equipment Type
Remote Active Air Sampler

Test Range
0.5 to 25.0 m particle size

Max Height
140 mm

Accuracy
10% (typical; sample flow rate)

Automation Grade
Fully Automatic

Interface Type
Ethernet (Modbus TCP/IP), isolated RS-485 (Modbus RTU)

Power Supply
24 VDC

Humidity
10% to 90% RH (non-condensing)

Port Size
1/4 NPT

Operating Voltage
24 VDC

Mounting Type
Wall or panel mountable

Resolution
0.1 m

Measuring Range
0.5 m to 25 m

Response Time
Immediate (active sampling)

Application
Cleanroom particle and environmental monitoring

Display Type
External via remote control interface

Features
Stainless steel enclosure, ISO 21501-4 compliance, automated calibration

Temperature
0 C to 40 C (operating)

Usage
Continuous remote air sampling for cleanrooms

Capacity
Continuous sampling capability

Machine Weight
2.2 kg

Test Speed
90 lpm sampling rate

Control Mode
Remote control (via software/interface)

Alarm Output
Dry contact relay and visual indicator

Model Number
7010-090-1V

Enclosure Protection Grade
IP65

Data Storage
Up to 250,000 records (with external system)

Inlet Tubing Length
Maximum 30 meters

Power Consumption
<20 W

Dimensions (W x D x H)
90 mm x 180 mm x 140 mm

Maintenance
Low, automated calibration and diagnostics

Compatible Software
TSI Facility Monitoring Software

Sampling Principle
Active air sampling with internal vacuum pump

Operating Pressure
Standard atmospheric

Compliance Standards
ISO 21501-4, CE Marked

Material of Construction
316L Stainless steel

About TSI 7010-090-1V AeroTrak-Plus Remote Active Air Sampler

Features and Benefits :

RELIABLE MEASUREMENT
Easy compliance with FDA cGMP and EU GMP regulations by way of low d50 (0.8 m) and active flow measurement
Quick corrective action driven by real-time flow measurement warnings e.g., kinked tubing, vacuum loss, etc.
Design specific for Grade A and B environments with traceable materials and thoughtful accessories
Reduced interventions to change agar plates through intermittent sampling

Superior Cleanroom Monitoring

Engineered for controlled environments, the AeroTrak-Plus Remote Air Sampler offers precise detection of airborne particles from 0.5 to 25.0 m. Its active sampling capability and compliance with ISO 21501-4 make it the perfect solution for pharmaceutical, biotech, and semiconductor cleanrooms. With a robust stainless steel enclosure and minimal maintenance requirements, it stands out for both durability and ease of use.

Automated Operation and Data Management

Featuring full automation and remote control, the 7010-090-1V excels in continuous sampling with real-time results accessible via Ethernet or RS-485. The system supports data storage of up to 250,000 records (with external systems) and offers integrated alarm outputs for immediate alerts, ensuring constant environmental compliance and prompt response to deviations.

Flexible Installation and Integration

Mount the sampler on walls or panels with ease. Compatibility with TSI Facility Monitoring Software and external system interfaces via Modbus TCP/IP or RS-485 ensures smooth deployment in existing monitoring frameworks. The device operates efficiently within standard atmospheric pressure, 0C to 40C, and 10%-90% non-condensing humidity.

FAQ's of TSI 7010-090-1V AeroTrak-Plus Remote Active Air Sampler:

Q: How does the TSI 7010-090-1V active air sampler operate?

A: The unit uses internal vacuum pump technology for active air sampling, drawing in air at 90 liters per minute. It detects and counts airborne particles ranging from 0.5 to 25.0 m in real time, providing immediate feedback via remote control interface.

Q: What is the recommended installation location for the AeroTrak-Plus 7010-090-1V sampler?

A: This device is built for cleanroom applications and is typically wall- or panel-mounted. It integrates into pharmaceutical, biotech, and electronic manufacturing facilities where precise airborne particle control is essential.

Q: When should I perform maintenance or calibration on the air sampler?

A: Regular maintenance is minimized due to its automated calibration and diagnostics features. System prompts will guide necessary servicing, ensuring continued compliance and peak accuracy.

Q: Where is the data from the air sampler stored and how can it be accessed?

A: Data can be stored externally, with a capacity of up to 250,000 records. It is accessed via TSI Facility Monitoring Software through Ethernet (Modbus TCP/IP) or isolated RS-485 (Modbus RTU) interfaces.

Q: What compliance standards does the 7010-090-1V meet?

A: The sampler is ISO 21501-4 compliant, CE marked, and features an IP65-rated enclosure, meeting international cleanroom monitoring and safety standards.

Q: How long can inlet tubing be for this air sampler?

A: The unit supports a maximum inlet tubing length of 30 meters, allowing flexible placement within cleanroom or controlled environments.

Q: What are the key benefits of using the AeroTrak-Plus Remote Active Air Sampler?

A: Key advantages include continuous particle monitoring, automated calibration, robust 316L stainless steel construction, immediate response time, and seamless integration into facility monitoring networks-ensuring superior reliability and regulatory compliance.
