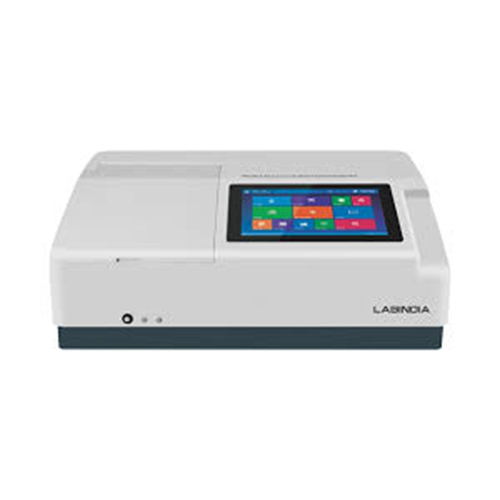

UV 3000 Spectrophotomet

Get a Price/Quote

UV 3000 Spectrophotomet Specification

Power Source
AC Electric

Measurement Range
0 - 125%T

Model No
UV 3000

Frequency
50/60 Hz

Core Components
Deuterium Lamp, Tungsten Lamp, Monochromator, Photodiode Detector

Feature
High Stability, High Resolution, User-friendly Interface

Accuracy
0.3%T

Temperature Range
Room Temperature (Operating: 15C to 35C)

Capacity
Single/Double Beam, 190-1100 nm wavelength range

Automation Grade
Automatic

Voltage
220 V

Equipment Materials
High-quality ABS plastic, Metal Body

Type
UV-Visible Spectrophotometer

Usage
Laboratory Analysis, Chemical Testing, Pharma, Research

Display Type
Digital LCD Display

Dimension (L*W*H)
480 x 360 x 210 mm

Weight
Approx. 13 kg

Light Source
Deuterium & Tungsten Halogen Lamp

Detector
Silicon Photodiode

Baseline Flatness
0.002 A

Photometric Accuracy
0.002 Abs

Operating Humidity
80% RH (Non-condensing)

Wavelength Accuracy
0.5 nm

Stray Light
0.1%T at 220nm, 360nm

Spectral Bandwidth
2 nm

Data Output
USB, RS232

Scanning Speed
Fast/Medium/Slow Selectable

Path Length
10 mm (Standard Cuvette)

Sample Compartment
Spacious, adjustable for different cuvette sizes

Wavelength Repeatability
0.1 nm

About UV 3000 Spectrophotomet

Standard Features of UV-Visible Spectrophotometer

Accurate analysis: Holographic grating greatly reduces stray light of the instrument, making the analysis more accurate.
Powerful function: The main unit of the spectrophotometer can analyze for photometric measurement, quantitative measurement, spectrum scan, DNA/Protein analysis, and can print data. When connected to a computer, the Spec UV software adds many additional functions, such as 3D spectrum analysis and GLP laboratory protocol. It can be applied in fast pesticide residue detection, environmental protection, inspection, quarantine, and other fields.
Convenient operation: High degree of automation, the operator only needs to press keys twice when measuring ordinary samples.
Easily upgraded: Many optional accessories enhance the flexibility and the measurement range of the instrument.
Easy routine maintenance: The simple mechanical structure and modular electrical design make the routine maintenance easy.
Original technology: The deuterium and tungsten lamps can be easily replaced and are supplied pre-aligned. A motorized automatic 8-cell holder is supplied as standard, which is particularly useful for the determination of pesticides.

Optional Accessories:

PS181-2 Sipper Pump Accessory (Pump, Tubing, Cassette, Front Panel, Flow Cell)
CH188-1 Position 10mm Constant Temperature Cell Changer (For use with PTC-2)
PTC-2 Peltier Module

Exceptional Accuracy and Stability

Engineered for precise measurements, the UV 3000 Spectrophotometer boasts photometric accuracy of 0.002 Abs and wavelength accuracy of 0.5 nm. Its baseline flatness of 0.002 A and stray light levels 0.1%T provide dependable results, vital for research and quality control applications.

Versatile and User-centric Design

The spacious, adjustable sample compartment supports both single and double beam configurations and accommodates various cuvette sizes. High-quality ABS plastic and metal construction ensure durability, while the digital LCD display and user-friendly interface simplify operations.

Seamless Data Management and Connectivity

Data can be exported efficiently using USB or RS232 ports, supporting streamlined analysis and reporting. Selectable scanning speeds adapt to your specific workflow needs, enhancing flexibility for laboratories involved in diverse analytical tasks.

FAQ's of UV 3000 Spectrophotomet:

Q: How does the UV 3000 Spectrophotometer ensure measurement accuracy?

A: The UV 3000 uses advanced monochromator and silicon photodiode technology, delivering a photometric accuracy of 0.002 Abs and a wavelength repeatability of 0.1 nm. This ensures highly reliable and precise results for your analytical requirements.

Q: What types of samples and applications is the UV 3000 suitable for?

A: This spectrophotometer is ideal for laboratory analysis, chemical testing, and pharmaceutical research. Its adjustable sample compartment accepts standard 10 mm cuvettes and accommodates multiple cuvette sizes for varied sample types, making it versatile for a range of scientific uses.

Q: When should I consider using fast, medium, or slow scanning speeds?

A: Fast scanning is ideal for quick overviews or screening, while medium and slow speeds provide higher resolution data for in-depth analysis. You can select scanning speed based on the detail and throughput required for your specific application.

Q: Where can data collected by the UV 3000 be exported or stored?

A: Measurement data can be easily exported via USB or RS232 connections, enabling seamless integration with computers and laboratory information management systems for efficient data processing and storage.

Q: What is the process for adjusting the sample compartment to fit different cuvette sizes?

A: The UV 3000 features an adjustable, spacious sample compartment. Simply adjust the holder mechanism to securely fit various standard and custom cuvette sizes, ensuring versatility for different sample volumes and experimental setups.

Q: How does using the UV 3000 benefit laboratory workflows?

A: With high accuracy, stable readings, selectable scanning speeds, and streamlined data output, the UV 3000 enhances efficiency and productivity in laboratory workflows. Its user-friendly interface reduces training time and its robust build ensures longevity for frequent use.

Q: What environmental conditions are optimal for operating the UV 3000?

A: The instrument operates best at room temperatures between 15C and 35C in environments with humidity levels up to 80% RH (non-condensing), ensuring stable performance and reliable results.
