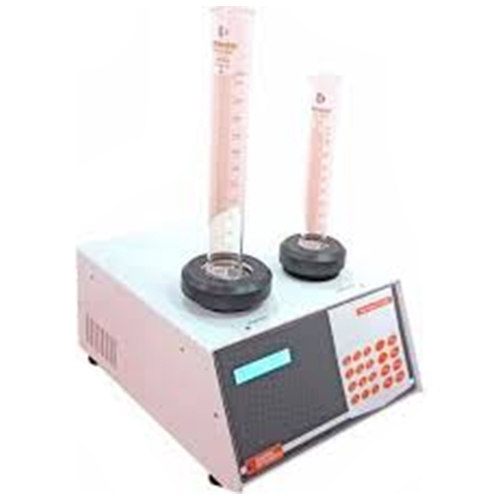

TD - 101 Tap Density Tester

Get a Price/Quote

TD - 101 Tap Density Tester Specification

Accuracy
1% of reading

Display Type
Digital LED Display

Power Supply
230 V AC, 50 Hz

Max Height
300 mm

Equipment Type
Digital Tap Density Tester

Number of Specimens
2 (Dual Cylinder)

Frequency
50 Hz

Specimen Size
100 ml / 250 ml Cylinders

Response Time
Instant

Measuring Range
1 g to 100 g

Application
Measurement of tap density of powders and granules

Mounting Type
Table-top

Resolution
0.01 g

Operating Voltage
230 V AC

Port Size
Standard cylinder diameter 50 mm

Test Range
1 g to 100 g

Temperature
5C to 40C

Humidity
Up to 80% RH

Features
Programmable tap number, dual cylinder, auto stop

Interface Type
RS232 Serial

Automation Grade
Semi-Automatic

Usage
Pharmaceutical, Chemical, Food Testing

Capacity
100 ml and 250 ml

Machine Weight
16 kg (Approx.)

Test Speed
300 rpm

Test Width
100 mm

Test Stroke
3 mm

Control Mode
Microprocessor-based

Data Output
RS232 / USB

Noise Level
<50 dB

Accessories Included
100 ml and 250 ml cylinders

Cylinder Material
Borosilicate Glass

Operational Modes
Continuous / Auto Stop

Compliance Standards
USP, EP, ASTM

Timer Range
Programmable up to 99 minutes

Tap Height
3 ± 0.2 mm

Power Consumption
35 W max

About TD - 101 Tap Density Tester

SALIENT FEATURES:

Extremely useful for pharmaceutical labs
Microprocessor based, easy to use
20 x 4 line alphanumeric LCD display with backlit
16 Soft touch membrane type keys
Tap Density, Initial Density, Compressibility Index
Independent programmable setups for User & USP mode with storage
RS232 Printer attachment facility
Automatically calculates result parameters like Hausner Ratio
Automatically stores last result
Power failure detection facility
User-friendly operation with menus & current status indicators

Reliable Tap Density Measurement

Designed to deliver consistent and precise results, the TD-101 Tap Density Tester uses programmable controls and advanced features like a dual cylinder setup. Compliance with major pharmacopoeia standards ensures reliability across pharmaceutical, chemical, and food testing applications.

User-Friendly Operational Modes

With both continuous and auto stop modes, this tester adapts to various testing protocols. Its intuitive microprocessor interface coupled with a digital LED display streamlines operation, offering instant response time and real-time monitoring of parameters.

Comprehensive Data Handling

The TD-101 supports seamless data output via RS232 or USB interfaces, allowing for easy data transfer and analysis. Its compatibility with modern lab information systems enhances traceability, accountability, and detailed record-keeping.

FAQ's of TD - 101 Tap Density Tester:

Q: How does the TD-101 Tap Density Tester work for powder and granule measurement?

A: The TD-101 operates by automatically tapping powder samples in borosilicate glass cylinders at a set frequency and stroke. It measures the increment in density after programmed taps using instant-response, digital LED display results, ensuring accuracy for samples ranging from 1 g to 100 g.

Q: What are the primary operational modes available on the TD-101 Tester?

A: This tester offers both continuous and auto stop modes. Continuous mode is ideal for extended testing, while auto stop mode allows users to set a specific tap count or timer up to 99 minutes, automatically halting the process when finished.

Q: When should I use the dual cylinder feature on this tester?

A: The dual cylinder (100 ml and 250 ml sizes) design enables simultaneous testing of two samples or different volumes. This enhances throughput and provides flexibility, particularly for laboratories handling multiple sample types or larger batch analyses.

Q: Where can the TD-101 Tap Density Tester be utilized?

A: Engineered for global compliance, this tap density tester is widely used in pharmaceutical, chemical, and food testing laboratories, especially those following USP, EP, or ASTM standards. Its versatility suits quality control, R&D, and production environments.

Q: What is the process for starting a test using this equipment?

A: To begin testing, simply place the sample in the appropriate borosilicate glass cylinder, select the desired operational mode and parameters via the digital controls, and initiate the automatic tapping. The tester displays real-time progress and provides an accurate readout upon completion.

Q: How does the RS232/USB data output feature benefit users?

A: The RS232 and USB interfaces simplify transferring test results to laboratory information management systems or external computers, supporting seamless documentation, analysis, and regulatory compliance without additional manual entry.

Q: What are the advantages of using this tap density tester over manual methods?

A: With features like programmable tapping, microprocessor control, precise digital reading, and dual cylinder testing, the TD-101 offers consistent accuracy, time savings, user convenience, and superior reproducibility compared to manual tap density measurement techniques.
