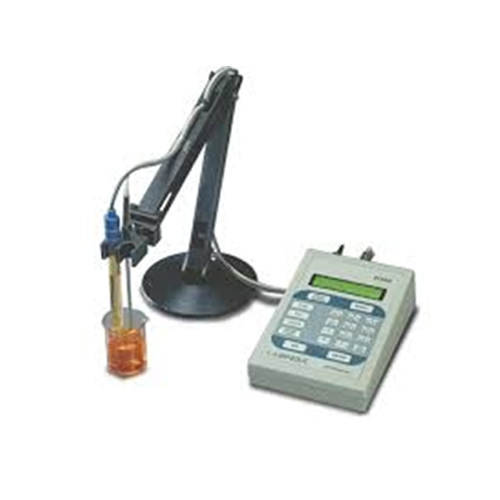

Phan pH Meter

Get a Price/Quote

Phan pH Meter Specification

Humidity
0-80% RH

Number of Specimens
1

Accuracy
0.1 pH

Max Height
175 mm

Power Supply
3 x 1.5V AAA Batteries

Equipment Type
Digital pH Meter

Application
pH measurement of liquids

Display Type
LCD digital display

Temperature
0C to 50C

Operating Voltage
4.5V

Resolution
0.01 pH

Measuring Range
0.00 to 14.00 pH

Mounting Type
Handheld

Automation Grade
Manual

Features
Automatic calibration, compact design, easy-to-use

Response Time
<1 minute

Usage
Laboratory, field, educational, industrial

Machine Weight
200 g

Control Mode
Manual

Dimensions
180 × 40 × 30 mm

Calibration
Three-point auto calibration

Body Material
ABS Plastic

Electrode Type
Replaceable glass electrode

Storage Conditions
Dry and dust-free environment

About Phan pH Meter

STANDARD FEATURES OF PHAN PH METER:

Advanced micro-controller based, user-friendly, state-of-the-art design
Sleek moulded cabinet with multifunction splash-waterproof polyester keyboard with soft keys
User interactive software with direct keys for ease of operation and protection against invalid entries
20 x 2 line backlit LCD display
Simultaneous measurement of pH, mV, and Temperature
SCAN key for displaying the stored pH values with Memory SET & Reading Number
Non-volatile memory storage of 40 pH readings in four sets of 10 readings each
AVERAGE function key to check the average of the pH readings stored in the selected memory SET
MEM CLEAR key to clear the pH data/reading memory buffer block and calibration data
Calibration of instruments with 4.00, 7.00, 9.20, and user-assigned/selected calibration standards with ASSIGN key
Built-in ATC with selection of Automatic/Manual mode. ATC temperature at 25°C or at manually user-entered temperature
Automatic Temperature Compensation by PT100 Temperature sensor, range 0° to 100°C
Input stability indication for reproducible results
Probe check mode for checking electrode aging
Error indication helps the user trace the problem
Audible beep indication during valid key operation

Highly Accurate and Easy Calibration

The Phan pH Meter features intuitive three-point automatic calibration, ensuring measurements remain precise and reliable across a wide 0.00 to 14.00 pH range. The replaceable glass electrode and manual control mode make calibration straightforward, supporting consistent performance for diverse liquid analysis requirements.

Durable Design for Versatile Usage

Engineered with a robust ABS plastic body, the meter is both lightweight and portable, making it ideal for fieldwork as well as laboratory use. Its compact dimensions allow for effortless handling, while the devices design supports single-handed operation in both professional and educational environments.

Convenient Operation and Reliable Power

Operating on standard 1.5V AAA batteries and displaying results via a digital LCD, the Phan pH Meter guarantees up to the minute readings wherever you are. Its automatic calibration and clear interface eliminate lengthy setup, enabling users to achieve fast, correct pH measurements with minimal training or expertise.

FAQs of Phan pH Meter:

Q: How do I calibrate the Phan pH Meter for accurate measurements?

A: The Phan pH Meter utilizes a three-point automatic calibration process. Follow the on-screen prompts to immerse the replaceable glass electrode in standard buffer solutions. This ensures continued accuracy across the full 0.00 to 14.00 pH range.

Q: What environment is best for storing the Phan pH Meter?

A: For optimal longevity, store the device in a dry and dust-free location. Avoid exposure to excessive humidity (over 80% RH) or temperatures outside 0C to 50C.

Q: When is it recommended to replace the glass electrode?

A: The replaceable glass electrode should be changed if you notice unstable or inaccurate readings even after calibration. Regular maintenance will maintain the devices 0.1 pH accuracy.

Q: Where can the Phan pH Meter be effectively used?

A: Its handheld compact design makes the Phan pH Meter suitable for laboratory, industrial, field, and educational applications across India. Its durable build supports both indoor and outdoor use.

Q: What is the process for measuring pH with this meter?

A: Simply power on the device, ensure calibration, immerse the glass electrode in your liquid sample, and wait for the reading to stabilize. The result will appear on the clear LCD digital display in under one minute.

Q: What are the main benefits of using the Phan pH Meter?

A: Key benefits include high measurement accuracy, automatic calibration for ease of use, fast response time, portability, and reliable operation in diverse environments. The replaceable electrode and simple interface make it user-friendly for all experience levels.
