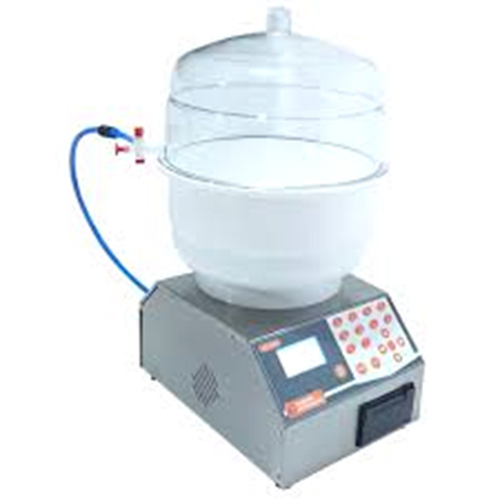

LT-201 Vacuuum Leak Tester

Get a Price/Quote

LT-201 Vacuuum Leak Tester Specification

Test Material
Plastic, glass, aluminum, packaging materials

Test Range
0 to -600 mmHg

Display
Analog dial gauge

Accuracy
2% F.S.

Gas Pressure
-600 mmHg (maximum)

Temperature
Room temperature

Number of Specimens
1 (per test cycle)

Humidity
85% RH

Operating Temperature
10C to 40C

Sensor
Vacuum Gauge

Power Supply
220V AC, 50Hz

Specimen Size
Up to 200 mm length x 100 mm width

Response Time
Instantaneous/Manual observation

Type
Vacuum Leak Tester

Use
Leak testing of packaging materials such as bottles, blisters, pouches, etc.

Test Medium
Air

Operating Voltage
220 V AC / 50 Hz

Shell Material
Stainless Steel

Net Weight
10 kg (Approx)

Pedestal Size
100 x 200 mm

Port Size
ID 6 mm

Operating Mode
Manual

Chamber Capacity
Approx. 4 liters

Vacuum Source
Inbuilt vacuum generator

Chamber Shape
Rectangular

Chamber Material
Polycarbonate (transparent)

Compliance Standards
Meets pharmaceutical and packaging standards

Maintenance
Minimal, easy to clean

Control Type
Manual vacuum release valve

Installation Requirements
Table-top operation

Accessories Provided
Sealing gasket, vacuum pump, test hose

About LT-201 Vacuuum Leak Tester

Salient Features:

128 × 64 Monochrome Display
Alphanumeric Keypad
20 Test and 10 Methods with date and time
Supplied in SS body
Selectable Pressure Units
LAN, RS-232, Parallel Printer, External 80 Column and 40 Column Built in Mini Dot Matrix Printer available.

Efficient Leak Detection for Packaging Integrity

The LT-201 Vacuum Leak Tester empowers packaging professionals to detect leaks in a wide variety of container types, ensuring product safety and compliance. The robust, see-through chamber facilitates direct observation of the specimen during testing, while the stainless steel shell ensures durability. Its manual operating mode and easy vacuum release put full control in the user's hands for reliable, repeatable performance.

User-Friendly, Maintenance-Light Operation

Designed for straightforward table-top operation, the LT-201 features a manual vacuum release valve and an inbuilt vacuum generator, eliminating the need for external sources. Accessories like sealing gaskets and a test hose are included for convenience. The minimal maintenance requirements and easy cleaning process make it suitable for busy laboratory or production environments.

FAQ's of LT-201 Vacuuum Leak Tester:

Q: How does the LT-201 Vacuum Leak Tester detect packaging leaks?

A: The LT-201 uses a vacuum chamber to create a specified negative pressure around the test specimen. By observing pressure changes on the analog dial gauge while the specimen is subjected to air under vacuum, users can identify the presence of leaks. Any drop in vacuum signifies a failure in packaging integrity.

Q: What types of materials and packaging can be tested using the LT-201?

A: This instrument is suitable for leak testing packaging made from plastics, glass, aluminum, and other common packaging materials. It accommodates bottles, blisters, pouches, and similar containers up to 200 mm in length and 100 mm in width.

Q: When should I use the LT-201 for my products?

A: The LT-201 is ideal for both routine quality control during production and validation tests in R&D settings. Regular testing helps ensure packaging integrity before product release and maintains compliance with pharmaceutical and packaging industry standards.

Q: Where can the LT-201 Vacuum Leak Tester be installed?

A: Designed as a table-top instrument, the LT-201 can be easily set up in quality control labs, production facilities, or research settings. Its compact size and portability make it ideal for locations with limited bench space.

Q: What is the process for performing a leak test with this equipment?

A: Position the specimen inside the transparent chamber and secure it with the supplied sealing gasket. Connect the test hose, close the lid, and use the manual control to achieve the desired vacuum (up to -600 mmHg). Monitor the analog dial gauge and observe the specimen. After the test duration, use the manual release valve to return the chamber to atmospheric pressure.

Q: What are the main benefits of using the LT-201 Vacuum Leak Tester?

A: The LT-201 offers precise, reliable leak detection that helps ensure product safety and regulatory compliance. Its transparent chamber allows real-time visual inspection, while manual controls make it simple to operate. Minimal maintenance and easy cleaning reduce downtime, making it a practical choice for busy packaging environments.
