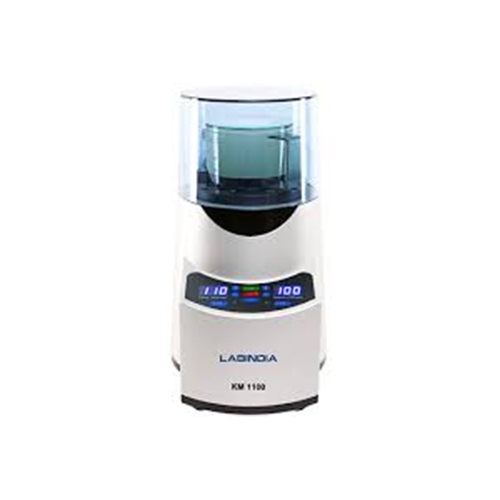

KM1100 Knife Mill

Get a Price/Quote

KM1100 Knife Mill Specification

Frequency
50/60 Hz

Power Source
Electric (Mains)

Capacity
Up to 1100 ml

Automation Grade
Semi-Automatic

Core Components
Motor, Blades, Stainless Steel Grinding Container, Safety Lock Lid

Model No
KM1100

Voltage
220-240V

Feature
Adjustable Speed, Safety Lock, Overload Protection

Accuracy
5%

Temperature Range
Ambient to 60C

Measurement Range
100 - 1100 ml

Equipment Materials
Stainless Steel (Grinding Container & Blades), ABS (Housing)

Type
Knife Mill

Usage
Sample Preparation for Grinding, Mixing, Homogenization

Display Type
Digital

Dimension (L*W*H)
294 x 207 x 223 mm

Weight
Approx. 6.7 kg

Noise Level
< 70 dB(A)

Grinding Time
5 seconds 3 minutes (programmable)

Speed Range
5004000 rpm (adjustable)

Power Cord Length
1.5 m

Accessories Included
2 Lids, Cleaning Brush, Instruction Manual

Safety Features
Lid Safety Interlock, Overheat Protection, Overload Protection

Motor Power
900 W

Control Interface
Touch Control Panel

Blade Material
Stainless Steel

Container Material
Stainless Steel

Sample Types
Soft, Medium-Hard, Fibrous, Tough, Oily, Dry Samples

About KM1100 Knife Mill

Standard Features of Knife Mill KM1100

Perfect for Size Reduction, Homogenization & Mixing in sample, with cutting size reduction principle
Feed Size less than 50mm & Final fineness achievable less than 320m
Setting of grinding time from 1 sec to 10 min.
1 Lit Grinding Containers & with reduction lids down 300&500ml (MOC: Autoclavable Plastic, Glass, Stainless Steel and PP)
Batch quantity 50-700ml & with reduction lids down 300&500ml
Gravity lid with overflow channel to homogenize samples with high water content
Varieties of Knives (Stainless Steel, Stainless steel with serrated blades for grinding meat & Titanium alloy for grinding without heavy metal contamination)
Number of blades can be used at a time up to 2 Powerful Motor with adjustable speed 1.1KW (2000-15000RPM)
Simple quick start operation
Three modes of operation (Interval mode, Reverse mode and Press-and-Play mode)
Overload protection and safety lock design

Versatile Performance for Diverse Samples

The KM1100 Knife Mill is engineered for versatility, accommodating a broad spectrum of sample types including soft, fibrous, and even oily materials. Its adjustable speed and programmable grinding time provide precise control over each preparation process, ensuring consistent and reliable results for grinding, mixing, or homogenization.

User-centric Safety and Operation

Designed with user safety in mind, the KM1100 comes with a lid safety interlock and integrated overheat and overload protection. Its semi-automatic operation is complemented by a touch control panel and digital display, offering accuracy, accessibility, and straightforward programming for all sample preparation needs.

Durable Construction and Comprehensive Accessories

Built with stainless steel for the grinding container and blades, and ABS housing, the KM1100 assures both toughness and longevity. Included accessories-a cleaning brush, two lids, and an instruction manual-further simplify maintenance and daily use, making it a reliable choice for frequent laboratory operations.

FAQ's of KM1100 Knife Mill:

Q: How does the KM1100 Knife Mill ensure user safety during operation?

A: The KM1100 is equipped with multiple safety features, including a lid safety interlock to prevent the unit from operating when the lid is open, as well as overheat and overload protection to safeguard both the user and the equipment from potential hazards during grinding.

Q: What types of samples can be processed with the KM1100 Knife Mill?

A: This knife mill can handle a wide range of sample types such as soft, medium-hard, fibrous, tough, oily, and dry materials, making it a versatile tool for laboratories dealing with various sample preparation requirements.

Q: When should I use the adjustable speed and programmable grinding time features?

A: You should adjust the speed (500-4000 rpm) and grinding time (5 seconds-3 minutes) depending on the material's hardness, texture, and the desired fineness of the result. The touch control panel allows precise settings tailored to each sample type and preparation objective.

Q: Where is the KM1100 Knife Mill best utilized?

A: The KM1100 is ideal for analytical, research, and industrial laboratories in India that require reliable and efficient sample preparation for grinding, homogenization, or mixing across various material types.

Q: What is the process for cleaning and maintaining the KM1100 Knife Mill?

A: The stainless steel grinding container and blades can be easily cleaned with the included cleaning brush. For daily maintenance, ensure the unit is unplugged and all accessible parts are cleaned after each use, following instructions provided in the manual for safe and efficient upkeep.

Q: How does the KM1100 benefit laboratory workflows?

A: Its robust motor, adjustable settings, and high-quality construction accelerate workflow while maintaining accuracy and safety. The large capacity (up to 1100 ml) and programmable functions reduce preparation time and manual effort, enhancing productivity in laboratory environments.
