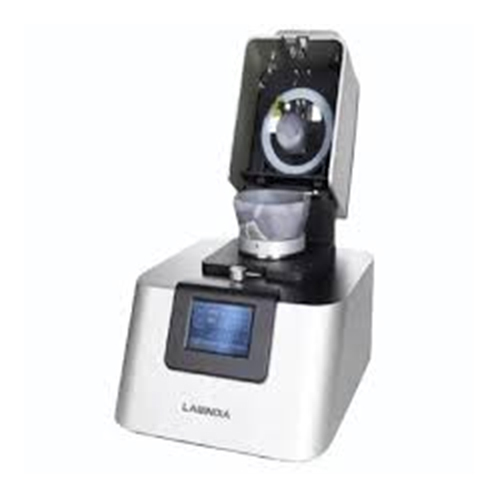

HG1100 Mor tar Grinder

Get a Price/Quote

HG1100 Mor tar Grinder Specification

Model No
HG1100

Temperature Range
Ambient to 60C

Frequency
50Hz

Capacity
5kg

Accuracy
1% RPM Control

Core Components
Mortar, Pestle, Drive Mechanism, Digital Control Panel

Voltage
220V AC

Power Source
Electric

Measurement Range
Fine to Coarse Grinding

Automation Grade
Semi-Automatic

Feature
Continuous and Uniform Grinding, Low Noise Operation

Equipment Materials
Stainless Steel and High-Grade Mild Steel Powder Coated

Type
Laboratory Mortar Grinder

Usage
Grinding mortar and pestle samples in laboratory applications

Display Type
Digital

Dimension (L*W*H)
580 x 250 x 390 mm

Weight
70kg (approx.)

Drive Mechanism
Gear Motor

Noise Level
<60 dB

Maximum Sample Size
Up to 5mm feed

Motor Power
0.25 HP

Application Area
Cement, Metallurgical, Geological, Glass, Ceramic, Chemical Labs

Safety Protection
Overload Protection, Emergency Stop Button

Rotational Speed
0100 RPM (Adjustable)

Control Panel
Touch Panel with Timer Setting

About HG1100 Mor tar Grinder

Standard Features of Mortar Grinder HG1100

Grinding, Mixing and Triturating of powders, Paste, Suspension.
Built-In 5" Touchscreen Display
Adding samples through the filling opening during the operation.
A variety of Grinding tools available to meet all applications (Hardened Steel, Stainless Steel, Tungsten Carbide, Agate, Sintered Aluminum Oxide and Zirconium Oxide)
A variety of scraper materials available to meet all applications (Polyurethane, PTFE, Beech wood)
Feed size < = 15mm
Grinding Chamber Volume 700 ml & batch quantity 10-200m1
Final Fineness < = 5m
Digital time operation setting 01 999min
Freely adjustable Digital pause time setting range 01-99 min. (Ensures mixing of two different tablets or dosages during the run)
Digitally adjustable speed setting 50-130rpm (Avoids overloading of motor)
9 Standard Operating Procedures (SOPs) memory
Program up to 99 Cycles
External helix - screw locking device for safety
Overload protection and auto switch-off during overload

Precision Grinding for Diverse Laboratory Applications

The HG1100 Mortar Grinder is purpose-built for labs working with cement, metallurgy, geology, glass, ceramics, and chemicals. With its robust 0.25 HP gear motor, the grinder delivers continuous, uniform results while supporting both fine and coarse grinding. Its wide application range ensures suitability for daily sample preparation across multiple scientific disciplines.

Advanced Control and Safety Features

Equipped with a touch panel featuring a timer and emergency stop button, the HG1100 combines convenience with essential safety mechanisms. Overload protection safeguards the equipment and samples, while the digital display allows precise control of grinding speed. These features make the grinder user-friendly and reliable for regular laboratory use.

Durability and Low-Noise Operation

Engineered with high-grade stainless steel and powder-coated mild steel, the HG1100 is built to last and withstand the rigors of frequent use. Its operation at less than 60 dB ensures a quiet working environment, and the compact dimensions make it easy to integrate into any laboratory workspace.

FAQ's of HG1100 Mor tar Grinder:

Q: How do I operate the HG1100 Mortar Grinder safely in the laboratory?

A: To use the HG1100 safely, place the sample (up to 5kg, feed size up to 5mm) in the chamber, set the desired speed and timer on the digital touch panel, and use the emergency stop and overload protection features if needed. Always follow the manufacturer's guidelines and ensure the unit is placed on a stable surface.

Q: What types of samples can be processed with the HG1100 Mortar Grinder?

A: The HG1100 is designed for a variety of laboratory samples, including cement, metallurgical, geological, glass, ceramic, and chemical specimens. Its flexibility supports both fine and coarse grinding tasks, accommodating a measurement range suitable for most research and quality control applications.

Q: When should I use the overload protection feature on this grinder?

A: The overload protection feature activates automatically if the motor senses excessive load, preventing equipment damage. It is particularly useful when working with harder or larger samples that might exceed operational limits, ensuring safety and prolonging the lifespan of the grinder.

Q: Where is the HG1100 Mortar Grinder manufactured and available for purchase?

A: The HG1100 Mortar Grinder is manufactured and supplied by distributors, service providers, manufacturers, and traders across India. It is accessible to laboratories nationwide, with after-sales support and servicing typically available through authorized partners.

Q: What is the grinding process in the HG1100 and how does it maintain uniformity?

A: The HG1100 uses a gear-driven mechanism where the mortar and pestle grind samples in a controlled manner. Adjustable speed (0-100 RPM) and continuous operation ensure that grinding remains uniform and consistent, resulting in high-quality sample preparation for analysis.

Q: How does the digital control panel benefit users during laboratory operations?

A: The digital touch panel allows users to easily adjust parameters such as speed and grinding time. This precision enhances operational efficiency, provides consistent results, and supports repeatability in laboratory research and quality control processes.

Q: What are the main advantages of using the HG1100 Mortar Grinder?

A: Major benefits include accurate and uniform grinding, low noise levels (<60 dB), robust safety features, precise RPM control (1%), and the durability of high-grade stainless steel construction. These features make the grinder ideal for intensive laboratory application and reliable performance over time.
