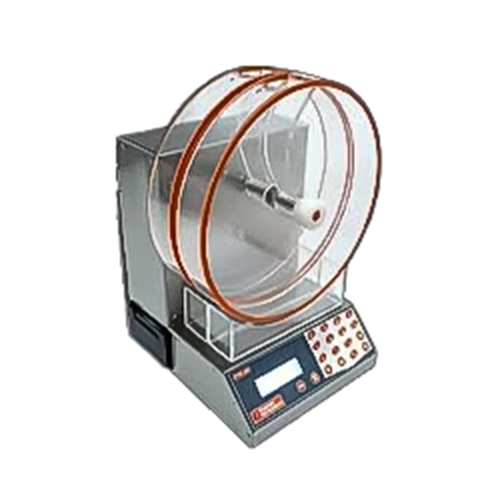

FTV-201 Friability Tester Friabilator

Get a Price/Quote

FTV-201 Friability Tester Friabilator Specification

Equipment Type
Friability Tester / Friabilator

Resolution
1 revolution or 1 second

Specimen Size
Tablets up to 13 mm diameter Millimeter (mm)

Mounting Type
Bench-top

Number of Specimens
Single or double drum (as required)

Power Supply
230 V AC, 50 Hz

Temperature
Ambient, 15 C - 35 C Celsius (oC)

Response Time
Immediate upon test end Minutes

Interface Type
Keypad interface

Humidity
Up to 90% RH (non-condensing)

Port Size
Standard drum opening: 39 mm ID

Accuracy
High, digital counter-based mg

Display Type
Digital display

Hardness
Not applicable - For friability only

Frequency
50 Hz Hertz (HZ)

Test Range
1-900 revolutions or timer setting 1-99 min

Measuring Range
0-100% weight loss calculation Celsius (oC)

Features
Transparent acrylic drum, digital timer, auto stop, compact design

Max Height
Approx. 240 mm

Operating Voltage
230 V AC, 50 Hz Volt (V)

Automation Grade
Semi-Automatic

Application
Tablet friability/abrasion resistance determination in pharmaceuticals

Usage
Pharmaceutical laboratory equipment

Capacity
Up to 100 tablets (depending on size) Kg

Machine Weight
Approx. 6 kg Kilograms (kg)

Test Speed
25 rpm

Test Width
Single drum: 100 mm, Double drum: 100 mm each Millimeter (mm)

Test Stroke
360 drum rotation

Control Mode
Digital Control with preset count/timer

Drum Material
Acrylic

Chamber Material
Clear acrylic drum

Drive Mechanism
DC geared motor

Dimensions (LxWxH)
315 x 225 x 240 mm

Noise Level
Low, <60 dB

Finish
Powder coated body

Timer Range
Programmable up to 99 minutes

Safety Feature
Automatic stop at time/count reached

About FTV-201 Friability Tester Friabilator

Product Features:

USP and EP Compliant: The Pharmag Instruments Friability Testing Instrument is compliant with USP <1216> and EP <2.9.7>.
Built-in Printer: Available with a 40-column built-in printer. The printer does not contribute to the overall product dimensions.
Parameter Measurement: Used to determine the ability of compressed tablets to withstand fracture and breaking during transportation.
Display: LCD Display (20 x 4) shows set RPM or count, depending on the selected mode of operation.
Power OFF Resume and Auto Unloading: These features simplify the process and make the device more convenient to use.
Compatibility: The compact and lightweight design is well-suited for portability and use in production settings.

Reliable Tablet Friability Testing

The FTV-201 Friability Tester provides pharmaceutical labs with a dependable method for assessing tablet durability. Its transparent acrylic drum and digital control system offer convenience and precise results, while automated features minimize operator intervention.

User-Friendly Design for Laboratories

Designed with ease-of-use in mind, this bench-top friabilator boasts a powder coated body and intuitive keypad interface. Its clear viewing drum, digital timer, and automatic stop support efficient operation and reliable repeatability, making it an excellent fit for rigorous testing environments.

Adaptable and Efficient Operation

The FTV-201 accommodates a range of tablet sizes (up to 13 mm diameter) and capacities (up to 100 tablets). Programmable test parameters, rapid response time, and support for single or double drum usage make it versatile for both routine and specialized pharmaceutical quality control applications.

FAQ's of FTV-201 Friability Tester Friabilator:

Q: How does the FTV-201 Friability Tester work?

A: The FTV-201 operates by rotating tablets within a clear acrylic drum at a controlled speed of 25 rpm, simulating abrasion. The loss in tablet weight after a set number of revolutions or time (programmed using the digital interface) measures their friability or resistance to wear.

Q: What is the benefit of the automatic stop feature on the FTV-201?

A: The automatic stop ensures the test ends precisely when the programmed time or revolution count is reached, providing consistency, reducing manual oversight, and enhancing safety during operation.

Q: When should the FTV-201 Friabilator be used in pharmaceutical processes?

A: It should be used during tablet quality control phases, particularly after tablet compression but before product release, to ensure that tablets meet regulatory standards for friability and mechanical strength.

Q: Where is the FTV-201 Friability Tester typically installed?

A: This tester is designed for use in pharmaceutical laboratories. It is a bench-top model, compact in size, suitable for quality control labs in manufacturing, research, and academic environments.

Q: What types of tablets can the FTV-201 accommodate for testing?

A: The FTV-201 supports testing of tablets up to 13 mm in diameter and can hold up to 100 tablets per drum, depending on their size. Both single and double drum models allow flexibility in specimen number.

Q: How do I operate and program the FTV-201 for a friability test?

A: Using the keypad interface, operators can set the desired number of revolutions (1-900) or time (1-99 minutes). Insert the tablets, select parameters, and start the test. The digital display shows progress, and the drum automatically stops when the test concludes.

Q: What advantages does the clear acrylic drum offer during testing?

A: The transparent drum allows operators to visually monitor tablets throughout the test without interrupting operation, ensuring accurate observation while maintaining consistent environmental conditions.
