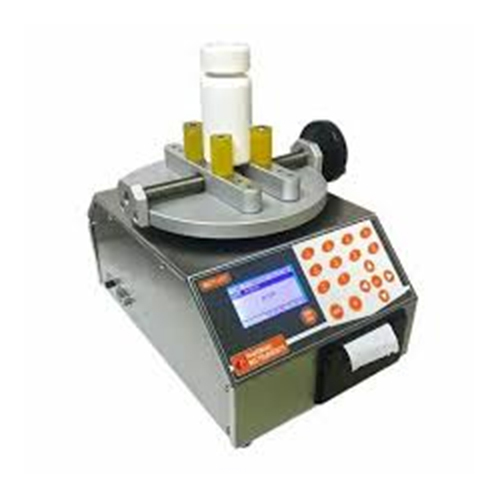

BCT - 201 Bottle Cap Torque Tester

Get a Price/Quote

BCT - 201 Bottle Cap Torque Tester Specification

Max Height
350 mm

Response Time
Instantaneous

Temperature
5C ~ 35C

Test Range
0~20 Nm

Features
User Selectable Units, Peak Hold, Data Storage

Port Size
Standard Bottle Neck up to 50mm

Display Type
Digital LCD Display

Power Supply
AC 220V 50Hz

Frequency
50Hz

Specimen Size
Bottle cap 10-50 mm dia.

Humidity
85% RH

Interface Type
RS232 (optional)

Automation Grade
Semi-Automatic

Operating Voltage
220V AC

Number of Specimens
1

Mounting Type
Bench top

Resolution
0.01 Nm

Measuring Range
0 to 20 Nm

Equipment Type
Digital Torque Tester

Accuracy
1% F.S.

Application
Bottle Cap Opening/Closing Torque Measurement

Usage
Measuring torque of bottle caps

Capacity
20 Nm

Machine Weight
16 kg

Test Speed
30 rpm

Test Width
100 mm max

Test Stroke
150 mm

Control Mode
Digital Manual/Automatic

Torque Direction
Clockwise/Counterclockwise

Data Output
USB/RS232 (optional)

Peak Value Function
Available

Overload Protection
Automatic alarming

Battery Backup
Optional

Power Consumption
30W

Min. Indication Value
0.01 Nm

Fixture Adjustment
Manual Clamp

About BCT - 201 Bottle Cap Torque Tester

Compatibility: High Resolution, High Accuracy and Easy to operate.
Real-time Data Transfer: It can transmit the data through RS-232 to PC during every test.
Unit selection & Conversion: Units available: Kgf.cm/Inch.lbs/daN.cm/N.cm/N.m/KP.
Parameter Measurements: Very low; low; high; very high, which permit to detect and display messages of quality in relation to the detected torque (visualization on bar-graph).
Memorization of 4 thresholds: The Bottle Cap Torque Tester can set the Upper and Lower limit Deviation value to judge the measured results. It has a buzzer which can alarm automatically with sound and light.
Display: Monochrome Graphical Display.
Results Storage: Measures 20 batch data values with date and time available

High-Precision Torque Measurement

The BCT - 201 provides reliable torque testing for bottle caps, ideal for beverage, pharmaceutical, and cosmetic industries. With a digital LCD display and peak hold function, operators can effortlessly measure and record precise torque values. The equipment's adjustable manual clamp accommodates standard neck bottles up to 50 mm, ensuring versatility for a variety of specimen sizes.

Advanced Safety and Data Features

Equipped with an automatic overload protection system and alarming function, the BCT - 201 safeguards both the device and users during testing. Optional USB/RS232 interfaces allow seamless data export and connectivity, making data logging and analysis straightforward for quality assurance processes.

Flexible Operation and Control

Control the tester in either digital manual or automatic mode, adapting to different user preferences or testing requirements. Test speeds up to 30 rpm and adjustable test strokes up to 150 mm enable tailored bottle cap evaluations. The semi-automatic, bench-top design is ideal for laboratory and industrial settings alike.

FAQ's of BCT - 201 Bottle Cap Torque Tester:

Q: How can I operate the BCT - 201 Bottle Cap Torque Tester?

A: You can operate the BCT - 201 in both manual and automatic digital modes using its intuitive controls. Start by securing the bottle in the manual clamp, select the desired test parameters on the digital LCD interface, and begin the test to measure the torque required for opening or closing caps.

Q: What types of bottles and caps can be tested with this torque tester?

A: The tester accommodates bottle caps with diameters ranging from 10 to 50 mm and bottle necks up to 50 mm, suitable for a range of standard bottles in the beverage, pharmaceutical, and personal care industries.

Q: When should the peak value function be used?

A: The peak value function is most effective when you need to capture the maximum torque applied during a test cycle, such as when verifying that caps have been properly fastened or sealed according to quality control standards.

Q: Where can data from the torque tester be exported or saved?

A: Data can be exported via USB or optional RS232 interfaces, making it easy to transfer results to computers or printers for analysis and record-keeping in laboratory or industrial environments.

Q: What is the process for adjusting the fixture to fit different bottle sizes?

A: The fixture adjustment is manual; simply use the clamp to secure bottles with varying neck widths (up to 50 mm). Ensure the bottle is firmly in place before starting any measurement for accurate and repeatable results.

Q: What benefits does the automatic overload protection feature provide?

A: Automatic overload protection with alarm helps prevent damage to the tester and ensures operator safety by instantly signaling if the applied torque exceeds the preset limits during operation.

Q: How accurate are the torque measurements provided by the BCT - 201?

A: The BCT - 201 delivers measurements with a high accuracy of 1% full scale and a resolution of 0.01 Nm, ensuring precise and reliable torque testing for quality assurance and compliance.
