Micro Ball Mill
Micro Ball Mill

Micro Ball Mill

MOQ : 1 Unit

Micro Ball Mill Specification

  • Core Components
  • Motor, display, grinding jars, timer
  • Power Source
  • Electric
  • Model No
  • MBM-100
  • Voltage
  • 220 V Volt (v)
  • Frequency
  • 50/60 Hz Hertz (HZ)
  • Accuracy
  • <10 mm/m
  • Temperature Range
  • High precision grinding, sample repeatability Celsius (oC)
  • Automation Grade
  • Semi-Automatic
  • Capacity
  • 2 x 20 ml, 2 x 10 ml, 2 x 5 ml (multiple jar holding capability) Milliliter (ML)
  • Feature
  • Rapid grinding with high energy impact, programmable operation
  • Measurement Range
  • Samples up to 2 x 20 ml
  • Equipment Materials
  • Stainless steel housing, hardened steel/zirconia/grinding jars
  • Type
  • Bench-top laboratory ball mill
  • Usage
  • Fine grinding and mixing of small volume samples
  • Display Type
  • Digital LCD display
  • Dimension (L*W*H)
  • 360 mm x 240 mm x 340 mm Millimeter (mm)
  • Weight
  • Approximately 6 kg Kilograms (kg)
  • Cleaning
  • Easy to clean design
  • Sample Types
  • Powder, suspension, tissue, biological, mineral samples
  • Timer Setting
  • Programmable up to 99 min
  • Grinding Principle
  • Planetary ball milling
  • Rotational Speed
  • 2001500 rpm adjustable
  • Suitable For
  • Laboratory, research, analytical, and quality control applications
  • Jar Material Options
  • Hardened steel, stainless steel, zirconia, tungsten carbide
  • Noise Level
  • <65 dB
  • Protection
  • Overload and overheating protection
  • Safety Lock
  • Lid safety interlock



About Micro Ball Mill

  •  Micro ball mill (please order grinding jars and balls separately)
  • Feed size: <10mm
  • Final fineness: <5m
  • Speed: 1801800rpm
  • Time: 00:0199:59 (min/s)
  • Sample volume: 0.220ml
  • Rated power: 200W
  • Power supply: 220V, 50Hz
  • Instrument size (WDH): 380480281mm
  • Package size (WDH): 460380660mm
  • Weight: 34kg



Precision Laboratory Grinding

Experience consistent, high-quality sample preparation with the MBM-100 Micro Ball Mill. Its planetary grinding principle delivers uniform particle size reduction, suitable for analytical, research, and quality control processes. With multiple jar material choices and capacities, this equipment adapts to various application needs.


User-Friendly Safety and Control

The MBM-100 offers intuitive programmable operation through its digital LCD display and features a robust safety interlock to prevent accidental opening. Overload and overheating protection ensure reliable, safe grinding, while quick cleaning and easy maintenance maximize lab efficiency.

FAQ's of Micro Ball Mill:


Q: How do I program and adjust the rotational speed and timer on the Micro Ball Mill?

A: The Micro Ball Mill MBM-100 features a digital LCD display allowing you to set the rotational speed between 200 and 1500 rpm and the timer up to 99 minutes. Simply use the panel interface to select your required settings before operation.

Q: What types of samples can be processed in this ball mill?

A: This equipment is suitable for grinding, mixing, and homogenizing a wide range of sample types, including powders, suspensions, tissues, biological materials, and mineral samples, making it ideal for diverse laboratory and research applications.

Q: When should I use the overload and overheating protection features?

A: Overload and overheating protection are automatically engaged during operation to safeguard both the user and the equipment. If excessive load or temperature is detected, these features activate to prevent damage and ensure operational safety.

Q: Where can this micro ball mill be effectively utilized?

A: Designed for laboratory, research, analytical, and quality control settings, the MBM-100 is suitable for universities, research institutes, analytical labs, industrial R&D, and quality assurance departments.

Q: What is the process for cleaning and maintaining the MBM-100?

A: The mill boasts an easy-to-clean design. After each run, remove the grinding jars and wipe all accessible surfaces with suitable lab-grade cleansers. Always ensure the unit is switched off and unplugged prior to cleaning.

Q: How does using this ball mill benefit laboratory workflows?

A: By offering rapid, programmable high-energy grinding with high precision and repeatability, the MBM-100 streamlines sample preparation, enhances consistency in results, and reduces manual effort-leading to improved efficiency in laboratory workflows.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Milling Instruments Category

High Energy Ball Mill

High Energy Ball Mill

Power Source : Electric

Frequency : Digital, 135 Hz (602100 RMP) Hertz (HZ)

Type : Planetary Ball Mill

Usage : agriculture, biology, chemistry/ plastic, construction materials, engineering / electronics , environment/recycling, food geology/metallurgy, glass/ceramics, medicine/pharmaceuticals

Temperature Range : Ambient to 70 C Planck temperature ()

Display Type : 7'' Industrial Colour touch screen display with digital programming of all parameter

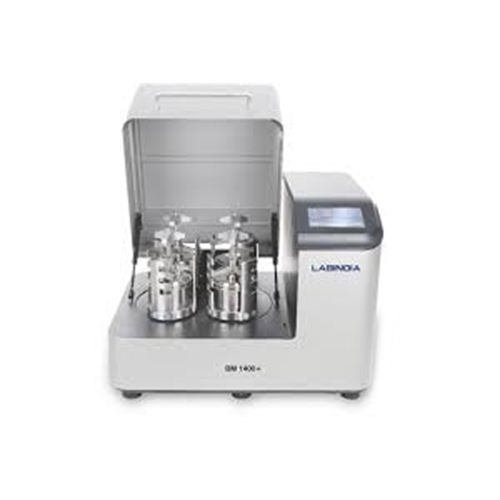

BM 1400 + Planetary Ball Mill
