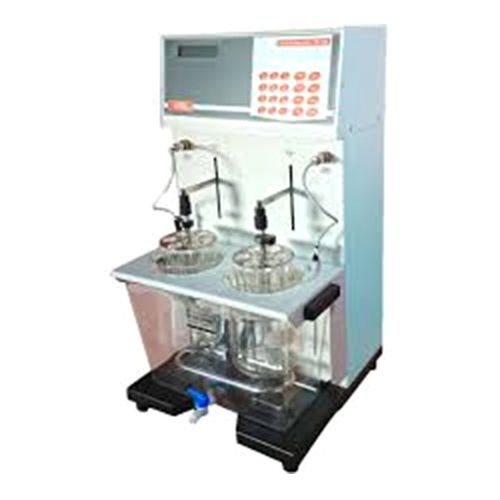

DT -101 Disintegration Tester

Get a Price/Quote

DT -101 Disintegration Tester Specification

Max Height
300 mm

Frequency
50 Hz

Port Size
Standard type, basket holds 6 tubes

Mounting Type
Bench-top

Temperature
Room temperature to 45C

Specimen Size
Tablet up to 20 mm length

Number of Specimens
6 tubes per basket

Power Supply
230 V AC, 50 Hz

Equipment Type
Disintegration Tester

Application
Tablet and capsule disintegration testing

Test Range
1 sec to 999 minutes

Interface Type
Manual/Analog interface

Humidity
Up to 80% RH

Accuracy
1 cycle

Display Type
Digital LED display

Operating Voltage
230 V AC

Features
User settable time, water bath heating, auto stop, audible alarm

Response Time
Immediate after cycle completion

Automation Grade
Semi-automatic

Measuring Range
1999 min

Resolution
1 sec

Usage
Pharmaceutical lab testing

Capacity
One (Single) Basket

Machine Weight
8 kg

Test Speed
3032 cycles/min

Test Width
Standard basket size 90 mm

Test Stroke
55 mm 2 mm

Control Mode
Digital PID controller

Mobility
Rubber foot pads for stability

Safety Feature
Automatic cut-off & alarm

Water Bath Heating
Yes, integrated heater

Ambient Operation Limit
10°C to 45°C

Compliance Standard
USP, IP, BP specifications

Basket Material
Stainless steel (SS 316)

Beaker Capacity
Approx. 1000 ml

Basket Lifting System
Motorized

Power Consumption
100 W

Timer
Programmable digital timer

About DT -101 Disintegration Tester

Features:

Compiles with USP, IP specifications
Extremely useful for pharmaceuticals labs
Highly Accurate and Easy to Operate
Baskets 'UP' & 'DOWN' movement as per IP/USP Specifications
20 x 4 Line Alphanumeric LCD with Backlit
Printer Attachment Facility
Audio Visual Indicators for System Status

Advanced Compliance and Safety Features

The DT-101 Disintegration Tester adheres strictly to USP, IP, and BP methodologies, ensuring your testing processes meet international regulatory requirements. Designed with laboratory safety in mind, the instrument features automatic cut-off and an audible alarm to alert users at the end of each cycle, minimizing risks during operation. The robust stainless steel construction further enhances durability and consistent performance in pharmaceutical testing environments.

Precision Control with Digital Technology

Equipped with a digital PID controller and a programmable timer ranging from 1 second to 999 minutes, the DT-101 delivers unparalleled accuracy and ease of use. The bright digital LED display allows real-time monitoring of test cycles, ensuring precision in every test. Set timer, speed, and temperature parameters according to your protocol for consistent disintegration results, vital for quality control in capsule and tablet testing.

Convenient and Reliable Operation

This benchtop unit is designed for operational simplicity and reliability. The motorized basket lifting system, water bath with integrated heating, and user-settable test parameters reduce manual handling and streamline testing workflows. With a capacity for six tablets or capsules and immediate response time after cycle completion, the DT-101 supports efficient batch testing for routine pharmaceutical quality assurance.

FAQ's of DT -101 Disintegration Tester:

Q: How does the DT-101 Disintegration Tester ensure accurate testing results?

A: The DT-101 uses a digital PID controller and a programmable digital timer, ensuring highly precise and repeatable test cycles. Its water bath heating with integrated temperature control maintains consistent testing conditions, facilitating accurate results as per USP, IP, and BP standards.

Q: What types of pharmaceutical products can be tested with the DT-101?

A: The DT-101 is designed for analyzing the disintegration of tablets and capsules, handling specimens up to 20 mm in length. It accommodates up to six specimens per cycle, making it ideal for routine quality control in pharmaceutical labs.

Q: When should I use the DT-101 Disintegration Tester in my laboratory workflow?

A: Deploy the DT-101 when you need to verify the disintegration time of tablets or capsules during product development or quality assurance. It is particularly valuable for batch release and stability testing per pharmacopeial requirements.

Q: Where can the DT-101 be installed for optimal operation?

A: The DT-101 is a bench-top instrument designed for use in controlled laboratory environments with ambient temperatures between 10C and 45C and up to 80% RH humidity. Its rubber foot pads provide stability on most laboratory bench surfaces.

Q: What is the process for operating the DT-101 Disintegration Tester?

A: Place up to six tablets or capsules in the stainless steel test basket, set the desired time, temperature, and other parameters using the digital controls, and start the test. The motorized lifting system and integrated heater automate much of the process, while an alarm and auto-stop feature alert you at test completion.

Q: How does the automatic cut-off and alarm benefit laboratory users?

A: The automatic cut-off and audible alarm functions provide added safety and convenience by stopping the machine and alerting users when a test is finished or if abnormal conditions occur, reducing the risk of human error and enhancing workflow efficiency.
