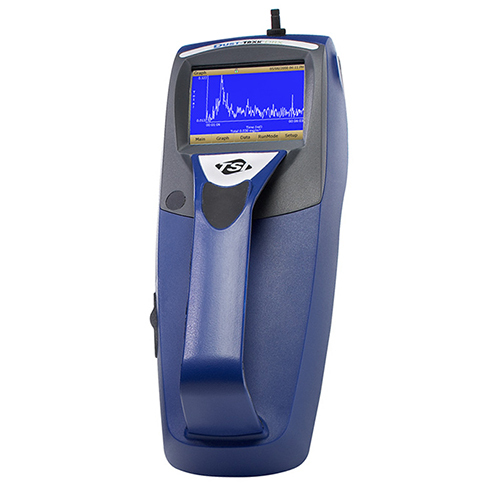

8533 DustTrak DRX Aerosol Monitor

Get a Price/Quote

8533 DustTrak DRX Aerosol Monitor Specification

Mounting Type
Portable, benchtop

Application
Real-time aerosol mass and size distribution monitoring

Display Type
VGA 5.7 in. (145 mm) color touchscreen LCD

Humidity
0 to 95% RH, non-condensing

Port Size
Aluminum inlet, 10 mm OD

Max Height
24.1 cm (9.5 in.)

Operating Voltage
100-240V AC, or 11.1 V DC battery

Automation Grade
Automatic/Manual modes

Temperature
0C to 50C (32F to 122F)

Features
Simultaneous mass and size fraction readings, internal pump, data logging, touch interface, real-time output

Equipment Type
Aerosol Monitor

Response Time
1 second (data logging interval adjustable)

Interface Type
USB, Ethernet, Analog Output

Measuring Range
Particle size: 0.1 to 15 m

Resolution
0.001 mg/m

Test Range
0.001 to 150 mg/m (mass concentration)

Power Supply
Lithium-ion rechargeable battery or universal AC adapter (100-240V, 50/60 Hz)

Frequency
50/60 Hz

Accuracy
5% of reading

Usage
Indoor air quality surveys, industrial/occupational hygiene, research

Machine Weight
3.2 kg (7 lbs) including battery

Control Mode
Manual and Data-logging

Pump Flow Rate
3.0 L/min

Languages Supported
Multiple languages

Alarm Output
User programmable audible and visual alarms

Data Storage
Over 60,000 sample records internal memory

Calibration Method
Field zero and span calibration

Software Compatibility
DustTrak Aerosol Software included

Enclosure Rating
IP54 / IEC 60529 (dust protected, splash resistant)

Battery Life
Up to 6 hours continuous operation

About 8533 DustTrak DRX Aerosol Monitor

Features and Benefits:

Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5, respirable, PM10, and PM Total size fractions
STEL alarm setpoint
Touchscreen interface
TrakPro data analysis software
Automatic zeroing (with optional zero module) minimizes the effect of zero drift
Perform in-line gravimetric sampling for custom reference calibrations
Manual and programmable data logging functions
Aerosol concentration range 0.001 to 150 mg/m
Environmental protected and tamper-proof with Environmental Enclosure
Desktop unit with battery and AC adapter

Applications:

Industrial/occupational hygiene surveys
Indoor air quality investigations
Outdoor environmental monitoring
Baseline trending and screening
Engineering control evaluations
Remote monitoring
Process monitoring
Emissions monitoring
Aerosol research studies

Included Items:

Carrying case
Analog alarm outputs
Rechargeable 7800 mAH Li-Ion battery
Switching power supply with universal line cords
TrakPro data analysis software
Zero filter
USB (device and host) computer cable
Analog/alarm output connector
Inlet cap (x2)
37-mm gravimetric sample cassette with mesh filter
Calibration impactor kit (with PM2.5 impactor, impactor plates (x2) and impactor oil)
Sample extension tube (3-ft/1-m)
Sheath air HEPA filters (x4)
Filter removal tool
Operation service manual
Calibration certificate
2-year warranty

Real-Time, High-Precision Aerosol Monitoring

The DustTrak DRX 8533 delivers simultaneous mass and size fraction readings, enabling accurate quantification of airborne particles ranging from 0.1 to 15 m. Its rapid 1-second response time and adjustable logging interval provide detailed temporal resolution for dynamic environments, ensuring users capture even transient aerosol events for comprehensive air quality analysis.

User-Friendly Controls and Secure Data Logging

Featuring an intuitive 5.7-inch VGA color touchscreen, operation is streamlined whether in the lab or field. The versatile device includes manual and automatic modes, with data securely logged into internal memory. With more than 60,000 records per session, critical measurement data are easily managed and exported via USB or Ethernet for in-depth analysis, making compliance and reporting efficient.

Robust Design for Demanding Environments

Encased in an IP54-rated housing, the DustTrak DRX 8533 is protected against dust and splashes, making it suitable for a range of industrial and research settings. Portable and lightweight, it operates in challenging conditions from 0C to 50C and up to 95% relative humidity, maximizing reliability for both short-term surveys and long-term projects.

FAQ's of 8533 DustTrak DRX Aerosol Monitor:

Q: How does the DustTrak DRX 8533 perform real-time aerosol monitoring?

A: The DustTrak DRX 8533 uses an internal pump with a 3.0 L/min flow rate to collect air samples and measures particle mass and size distribution in real time using its advanced detection system. Results are displayed and stored almost instantly with a 1-second response time.

Q: What is the process for calibrating the 8533 DustTrak DRX Aerosol Monitor?

A: Calibration is performed using a simple field zero and span calibration method. The device walks users through calibration via its touchscreen interface, ensuring continued measurement precision and compliance with industry standards.

Q: When should I use the manual versus the data-logging mode?

A: Manual mode is ideal for immediate, spot testing or when direct control is needed during sampling. Data-logging mode is best for unattended monitoring over extended periods, allowing automatic recording of aerosol levels at user-defined intervals.

Q: Where can the DustTrak DRX 8533 be used effectively?

A: This monitor is suitable for a variety of environments, such as indoor air quality surveys, industrial or occupational hygiene studies, and research laboratories. Its portable design and IP54 rating make it adaptable for both fieldwork and stationary use.

Q: What are the benefits of the DustTrak DRX's large internal memory?

A: With capacity for over 60,000 sample records, the monitor allows extended, uninterrupted data collection. This facilitates long-term studies and ensures that critical information is securely stored for later analysis and reporting.

Q: How can data from the 8533 DustTrak DRX be accessed or exported?

A: Recorded data can be accessed and exported using the included DustTrak Aerosol Software via USB or Ethernet connection. This supports integration into reports and further analysis in compliance with industry requirements.

Q: What makes the DustTrak DRX 8533 suitable for use in India and international settings?

A: The monitor supports multiple languages, accepts universal AC voltage (100-240V, 50/60 Hz), and is distributed by local partners, making it convenient and accessible for various users in India as well as globally.
